Laboratory Equipment
Software
MathWorks MATLAB
National Instruments LabVIEW
Agilent Vector Signal Analyzer Software (89600)
Equipment

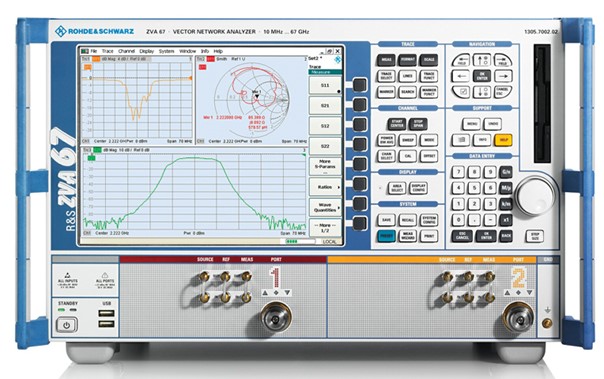

Rohde & Schwarz Vector Network Analyzer (ZVA67)
Frequency range: 10 MHz to 67 GHz
2 ports
Port type: 1.85 mm (m)
ZV-Z218 calibration kit (1.85 mm)
1.85 mm (m) to 1.85 mm (m) flexible cables (JUNFLON MWX061)
1.85 mm (m) to 1.85 mm (f) flexible cables (R&S ZV-Z196 1306.4559.24)
SMA (f) to 1.85 mm (f) adapters
SAGE Millimeter SAR-2013-15-S2 horn antenna
SAGE Millimeter SWC-15VF-R1 antenna connector
Rohde & Schwarz Signal and Spectrum Analyzer (FSW67)
Frequency range: 2 Hz to 67 GHz
Analysis bandwidth: 80 MHz (FSW-B80)
Port type: 1.85 mm (m)
1.85 mm (m) to 1.85 mm (m) flexible cables (JUNFLON MWX061)
1.85 mm (m) to 1.85 mm (f) flexible cables (R&S ZV-Z196 1306.4559.24)
SMA (f) to 1.85 mm (f) adapters
1.85 mm (f) to 1.85 mm (f) adapters
SAGE Millimeter SAR-2013-15-S2 horn antenna
SAGE Millimeter SWC-15VF-R1 antenna connector

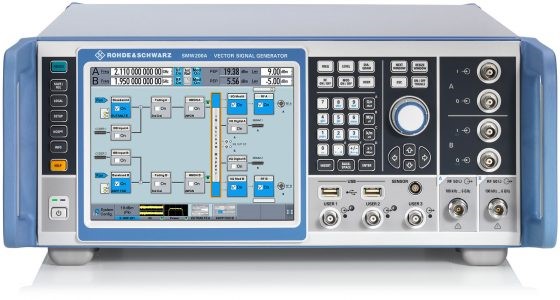

Rohde & Schwarz Vector Signal Generator (SMW200A)
Frequency range: 100 kHz to 40 GHz
120 MHz signal bandwidth
Port type: 2.92 mm (f)
2.92 mm (m) to 2.92 mm (m) cable
SMA (f) to 2.92 mm (m) adapter
2.92 mm (m) to 1.85 mm (f) adapter
1.85 mm (f) to 1.85 mm (f) adapters
SAGE Millimeter SAR-2013-15-S2 horn antenna
SAGE Millimeter SWC-15VF-R1 antenna connector
SAGE Millimeter SFU-15-E2 up-converter

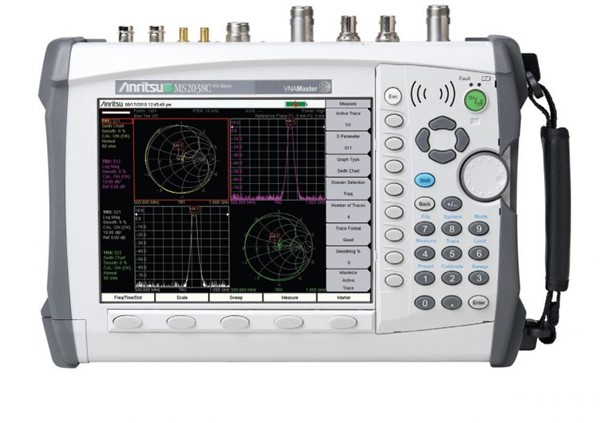

Anritsu Handheld Vector Network Analyzer + Spectrum Analyzer (MS2038C)
Vector Network Analyzer
Frequency range: 5 kHz to 20 GHz
OSLN50 and OSLNF50 calibration kits (up to 18 GHz)
True 2-Path 2-Port Vector Network Analyzer
Ultimate accuracy with 12-term error correction algorithm
User-defined Quad Display for viewing all 4 S-parameters
Spectrum Analyzer
Frequency range: 9 kHz to 20 GHz
Analysis bandwidth: 10 MHz
Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
Built-in pre-selector for eliminating spurious in displays

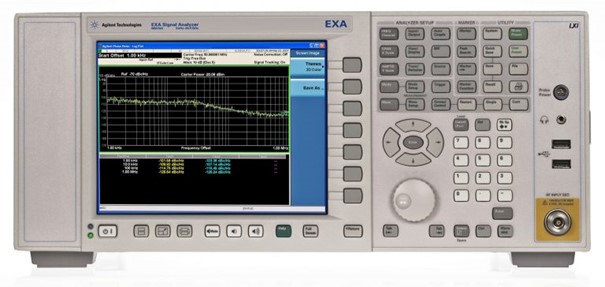

Agilent EXA Vector Signal Analyzer (N9010A)
Frequency range: 10 Hz to 7 GHz
Analysis bandwidth: 40 MHz
Microwave preselector bypass
Agilent EXG Vector Signal Generator (N5172B)
Frequency range, 9 kHz to 6 GHz
Custom digital modulation
ARB baseband generator (60 MHz RF bandwidth, 32 Msa)
AM, FM, phase modulation
Narrow pulse modulation
National Instruments USRP 2950R
Frequency range: 50 MHz to 2200 MHz
Analysis bandwidth: 120 MHz
GPS-Disciplined Clock
PCIe – MXI Express Interface Kit

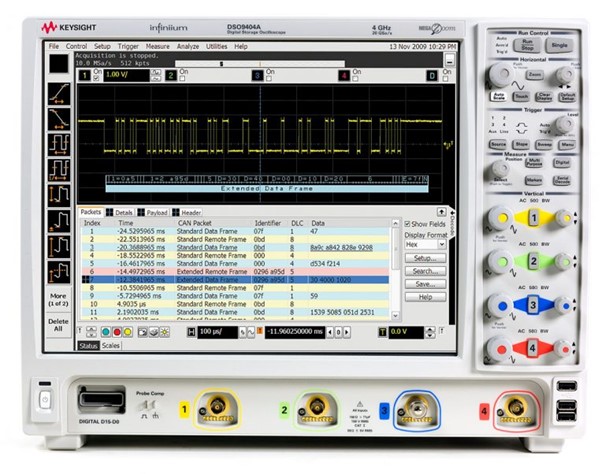

Agilent Infiniium DSO (DSO9404A)
4 channels
4 GHz, 10/20 GSa/s
Memory – 500Mpts/ch memory installed
Ettus Research Embedded USRP E310
2 units
Frequency range: 70 MHz to 6 GHz
Analysis bandwidth: 56 MHz

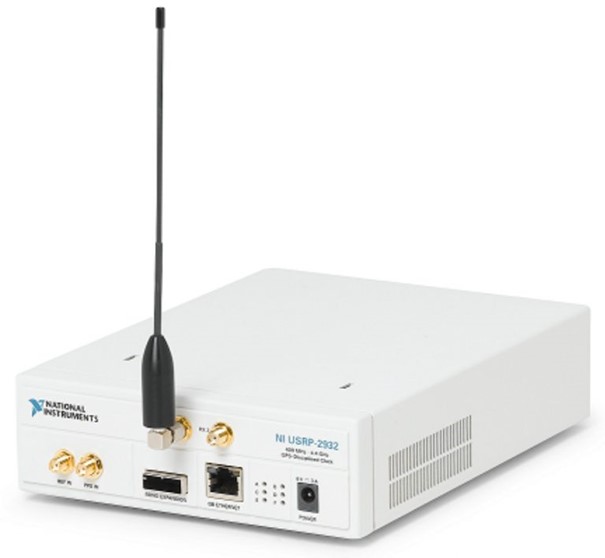

National Instruments USRP 2932
4 units
Frequency range: 50 MHz to 2200 MHz, 400 MHz to 4400 MHz, 1200 MHz to 6000 MHz
Analysis bandwidth: 40 MHz
GPS-Disciplined Oscillator Kit
OctoClock 8 Channel Clock Distribution with Integrated GPSDO (10 MHz Ref and PPS)
USRP Rack Mount Kit
Ettus Research USRP B205mini-i
1 unit
Frequency range: 70 MHz to 6 GHz
Analysis bandwidth: 56 MHz
USB 3.0 connectivity
Credit card-sized
Ettus Research Embedded USRP E310
2 units
Frequency range: 70 MHz to 6 GHz
Analysis bandwidth: 56 MHz
Ettus Research USRP B210
2 units
Frequency range: 70 MHz to 6 GHz
Analysis bandwidth: 56 MHz
MIMO (2 Tx & 2 Rx)
USB 3.0 connectivity
Ettus Research USRP B205mini-i
1 unit
Frequency range: 70 MHz to 6 GHz
Analysis bandwidth: 56 MHz
USB 3.0 connectivity
Credit card-sized

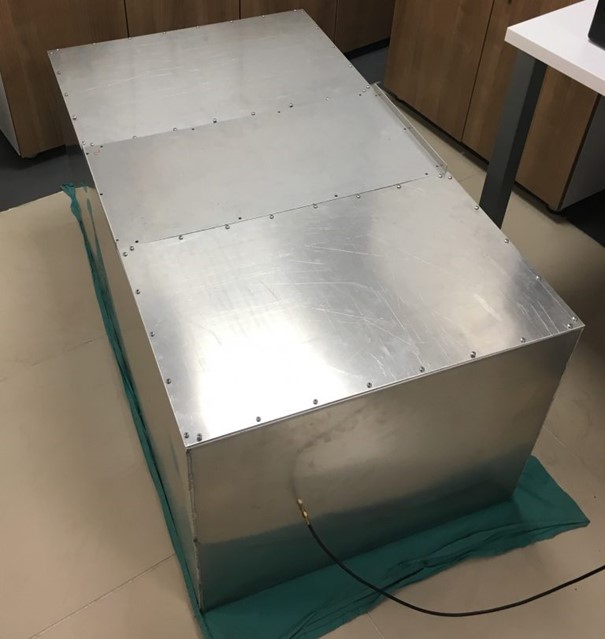

Reverberation Chamber
Dimensions of 55 x 120 x 68 cm
2 antenna ports
